40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm

Product Categories
TaiMi(Shenzhen) electronics technology Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

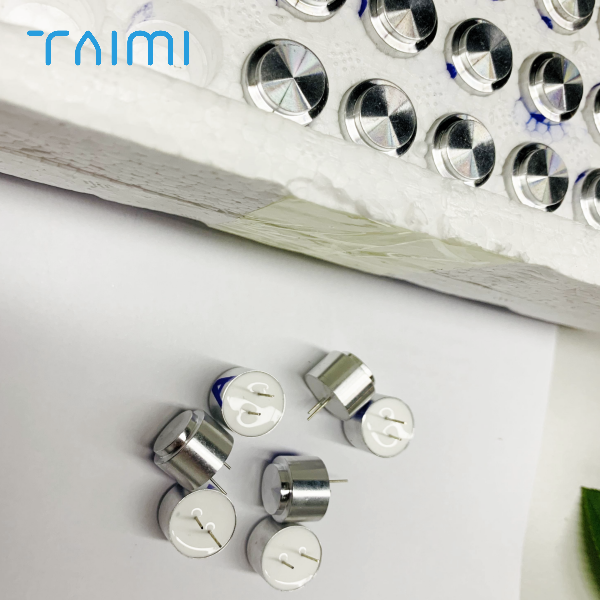

40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm

Brand Name : TAIMI

Model Number : TM-1640A10.5TR 40KHZ waterproof sensor

Certification : ISO,RoHS CE

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 100000/month

Delivery Time : 10~20days

Packaging Details : safe packaging

size : 16*10mm

Product Name : Waterproof 40khz 16mm Ultrasonic sensor

Function : Transmitter / Receive

Usage : distance sensor

Material : Aluminum case

Color : sliver

IP Level : IP65

Distance : 0.2~5m

Center Frequency : 40.0±1.0Khz Waterproof Ultrasonic Transducer

Warranty : 3 years

Contact Now

16mm waterproof dual function 40khz car ultrasonic parking sensor piezo transducer



Water proof type ultrasonic sensors were widely used for parking sensors, proximity sensors and level sensors, etc. With perfect seal these sensors can be used in a relatively poor environment such as dust and humidity.



Specification



  • Center frequency(KHz): 40.0±1.0
  • Transmitting Sound Pressure Level(dB) (30cm /10Vrms Sine Wave): ≥96
  • Receive Sensitive(dB) dB/v/μbar (0dB＝V/Pa): ≥-82
  • Directivity(deg)(º):75±10 Ringing(ms): ≤1.72
  • Function : Transmitter / Receive
  • Capacitance (pF)(25℃): 1800±10%
  • Allowable Input Voltage(Vp-p) (40KHz):150
  • Operating Temperature (℃): -30~+70
  • Storage Temperature (℃): -40~+85
  • Metals of case: Aluminum Terminal: PIN
  • Center frequency(KHz)
    40KHz±1.5KHz
    Transmitting Sound Pressurs Level(dB)
    ≥100dB (30cm/10Vrms Sine Wave)
    Receive Sensitive(dB)
    ≥-85dB/v/μ bar(0dB=V/Pa)
    -6 dB Directivity(deg)
    80±10°
    Ringing(ms)
    ≤1.2
    Sensitivity(mV)
    200~350
    Function
    Transmitter/Receive
    Capacitance(pF)
    2000±20% at 1.0KHz
    Allowable Input Voltage(Vp-p)
    150(40KHz)
    Operating Temperature(℃)
    -40~+80℃
    Storage Temperature(℃)
    -40~+85℃
    Metals of case
    Aluminum
    Terminal
    PIN
    Weight(g)
    3.3±0.2

40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm

40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm

40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm



40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm



All Series:

12*9mm Open Type 40±1.0KHz 80°±15° (-6dB) Transmitter
16 * 10mm Open Type 40±1.0KHz 60°±15° (-6dB) Receiver
16 * 10mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter
16*40mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter
16 * 10mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter&Receiver
45*20*15mm Open Type 40±1.0KHz ≤30° Transmitter&Receiver
16 * 12mm Open Type 40±1.0KHz 70°±15° (-6dB) Transmitter&Receiver
10*7mm Open Type 40±1.0KHz 70°±15° (-6dB) Transmitter
16*10mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter&Receiver
16*12mm Open Type 23±1.0KHz 80°±15° (-6dB) Transmitter
10 * 8MM Enclosed 40±1.0KHz 70°±15° (-6dB) Dual use
12 * 8mm Enclosed 40±1.0KHz X:110°±15 Y:70° ±10 Dual use
14 * 9MM Enclosed 40±1.5KHz X:110°±15° Y:60°±15° Dual use
12 * 9mm Open Type 40.0±1.0KHz 70°±15° (-6dB) Receiver
16 * 10MM Enclosed 40±1.0KHz 70°±15° Dual use
16 * 12MM Enclosed 40±1.0KHz X:80°±15° Y:80° ±15° Dual use
20 * 16MM Enclosed 165±5KHz 14°±2°(-6dB) Dual use
21 * 11MM Enclosed 970±30 KHz 8°±2° Dual use





40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm



40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm



Waterproof Ultrasonic TransducerWorkshop:

40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm





40khz PIN Terminal Waterproof Piezo Transducer Aluminum 16mm

Our Services

1. Reply your enquiry in 24 working hours.



2. Experienced staffs answer all your questions in professional and fluent English.



3. Customized design is available.



Technical support



1.We have professional technical support team to support our customers



2.If you have any question for the technology of our products,please Email to us and we will reply to you immediately



FAQ





1. Q: When can we get the reply?
Any inquiries will be replied within 24 hours.
2. Q: Can i have samples?
A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
3. Q: What about minimum order quantity?
A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.
4. Q: What about delivery time?
A: We will send sample to you within 3 days.
Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.
5. Q: What about terms of payment?
A: Payment terms: T/T, west Union, Paypal and L/C etc.
6. Q: How you will send the goods to us?
A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
7. Q: Are you trading company or manufacturer ?
A: We are in China buzzer manufactory
8. Q: Do you support OEM and ODM services?
A: Yes, surely support. we can customize products according to the drawing.
9. Q: Can you provide driven circuit?
A: Yes, of course sure.
10. Q: Can you solve technical problems for us?
A: Yes, Our Technical team will try our best to support you.
